Polarized tantalum capacitor with solid polymer dielectric, offering 33µF capacitance and 20% tolerance. Features a 6.3V DC rating, 40mΩ ESR, and 3.1A ripple current capability. Designed for surface mount applications with a 1411 (3528 metric) case size, operating from -55°C to 105°C. This RoHS compliant component is ideal for general-purpose use.
Package1411
Voltage6.3V
Capacitance33uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T520B336M006ATE040 technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1411 |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 40mR |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.9mm |
| Leakage Current | 21uA |
| Length | 3.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.1A |
| RoHS Compliant | Yes |
| Series | KO-CAP® T520 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T520B336M006ATE040 Datasheet
Download the complete datasheet for Kemet T520B336M006ATE040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

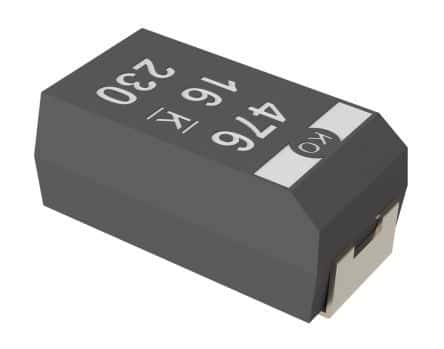

Product Images
