Polarized tantalum capacitor, 220µF capacitance, 6.3V DC rated voltage, and 20% tolerance. Features a 2312 (6032 metric) surface mount case code with a maximum operating temperature of 105°C. Equivalent Series Resistance (ESR) is 15mΩ, with a dissipation factor of 8%. This general-purpose component is constructed with solid polymer tantalum dielectric and is RoHS compliant.
Package2312
Capacitance220uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T520C227M006ATE015 technical specifications.
General
| Capacitance | 220uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | 2312 |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 15mR |
| Features | General Purpose |
| Height | 2.8mm |
| Length | 6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KO-CAP® T520 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T520C227M006ATE015 Datasheet
Download the complete datasheet for Kemet T520C227M006ATE015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

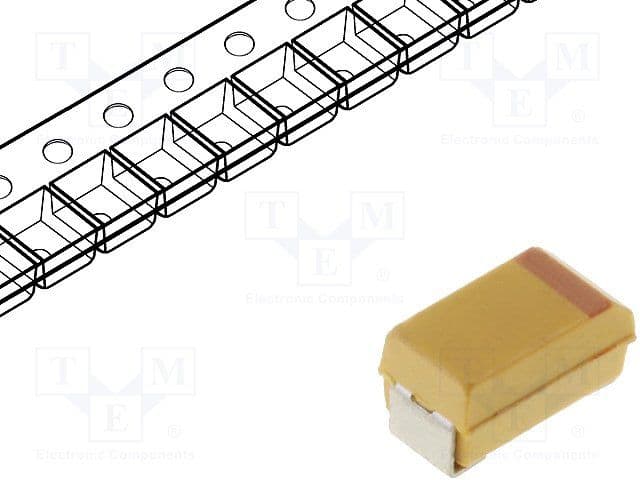

Product Images
