Polarized tantalum capacitor, 330µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features 40mΩ ESR, 10% dissipation factor, and 208µA leakage current. Surface mount package in 2917 (7343 metric) case code, 7.3mm length, 4.3mm width, 2.8mm height, 4.3mm depth. Operates from -55°C to 105°C, with 600mA ripple current. RoHS compliant.
Package2917
Voltage6.3V
Capacitance330uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T520D337M006ATE040 technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
40mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Lead Pitch
3.6mm
Leakage Current
208uA
Length
7.3mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
600mA
RoHS Compliant
Yes
Series
KO-CAP® T520
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T520D337M006ATE040 Datasheet
Download the complete datasheet for Kemet T520D337M006ATE040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

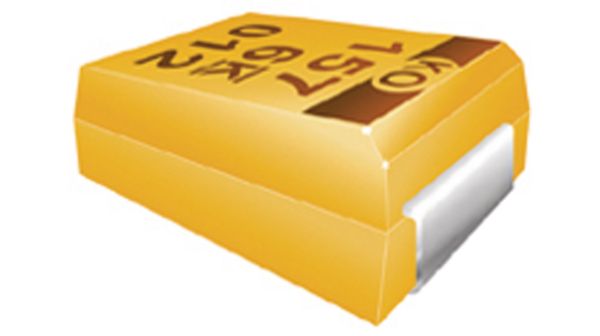

Product Images
