Polarized tantalum capacitor, 220µF capacitance, 4V DC rated voltage, and 20% tolerance. Features a low ESR of 45mΩ, 4A ripple current capability, and a general-purpose construction. This surface mount component utilizes a tantalum polymer dielectric and operates within a temperature range of -55°C to 105°C. Packaged in a 2917 (7343 metric) case code, it offers lead-free and RoHS compliance.
Package2917
Capacitance220uF
Resistance0.045R
Voltage Rating4V
Quick Jump:
Technical Specifications
Kemet T520V227M004ATE045 technical specifications.
General
| Capacitance | 220uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 45mR |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Leakage Current | 88uA |
| Length | 7.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 0.045R |
| Ripple Current | 4A |
| RoHS Compliant | Yes |
| Series | KO-CAP® T520 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T520V227M004ATE045 Datasheet
Download the complete datasheet for Kemet T520V227M004ATE045 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

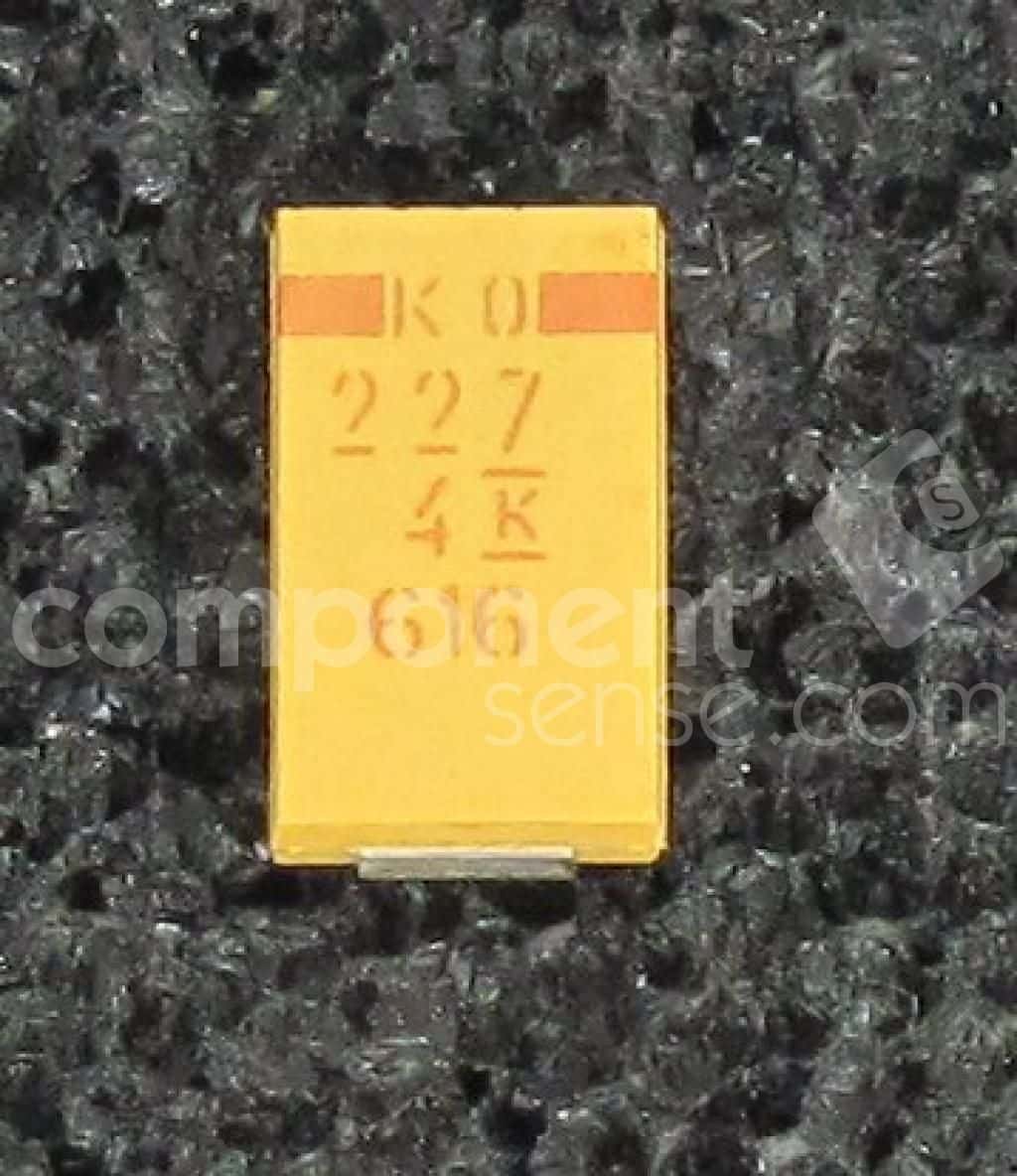

Product Images
