Surface mount tantalum capacitor, polarized, solid polymer construction, offering 680µF capacitance with a ±20% tolerance. Features a 6.3V DC rated voltage, 18mΩ ESR, and a ripple current rating of 3.9A. Operating temperature range spans -55°C to 125°C, with a leakage current of 428µA. Housed in a 2917 (7343 metric) case code, this RoHS compliant component is supplied on tape and reel.
Package2917
Capacitance680uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T530X687M006ATE018 technical specifications.
General
| Capacitance | 680uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 18mR |
| Features | General Purpose |
| Height | 4.3mm |
| Leakage Current | 428uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.9A |
| RoHS Compliant | Yes |
| Series | KO-CAP® T530 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T530X687M006ATE018 Datasheet
Download the complete datasheet for Kemet T530X687M006ATE018 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

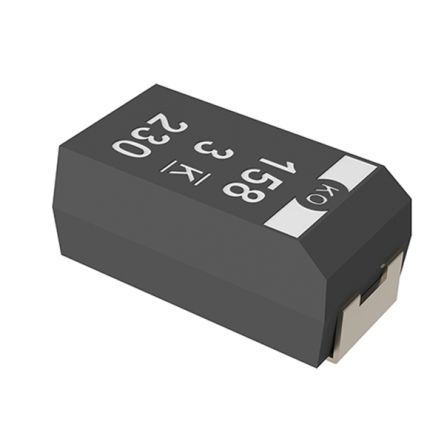

Product Images
