Polarized tantalum capacitor, 680µF capacitance, 4V DC rated voltage, and 20% tolerance. Features low ESR of 5mΩ, a dissipation factor of 8%, and a leakage current of 272µA. Surface mount component with a 2917 (7343 metric) case code, measuring 7.3mm L x 4.3mm W x 4mm H. Operates from -55°C to 125°C and is RoHS compliant.
Package2917
Voltage4V
Capacitance680uF
Resistance0.005R
Quick Jump:
Technical Specifications
Kemet T530Y687M004ATE005 technical specifications.
General
Capacitance
680uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
5mR
Features
General Purpose
Height
4mm
Lead Free
Lead Free
Lead Pitch
3.8mm
Leakage Current
272uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Reach SVHC Compliant
No
Resistance
0.005R
RoHS Compliant
Yes
Series
T530
Termination
SMD/SMT
Tolerance
20%
Voltage
4V
Voltage Rating
4V
DC Rated Voltage
4V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T530Y687M004ATE005 Datasheet
Download the complete datasheet for Kemet T530Y687M004ATE005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

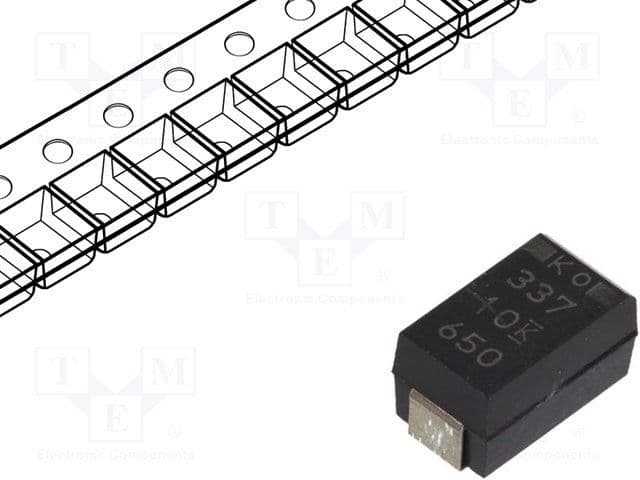

Product Images
