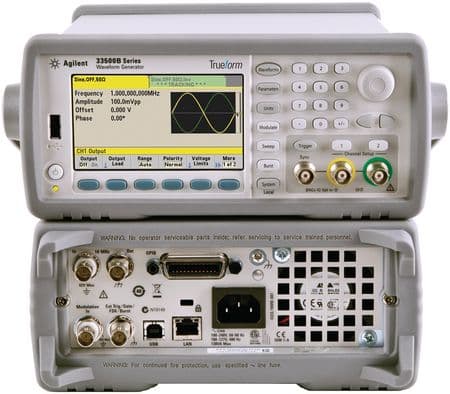

The Keysight Technologies 33522B is a dual-channel arbitrary waveform generator with a bandwidth of 30MHz and a sampling rate of 250MS/s. It measures 272.3mm in length, 212.8mm in width, and 88.3mm in height, and weighs 3.3kg. The device operates within a temperature range of 0°C to 55°C and has an input impedance of 5kΩ. It connects via USB and Ethernet interfaces.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Keysight Technologies 33522B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 30MHz |
| Frequency | 30MHz |
| Height | 88.3mm |
| Input Impedance | 5kR |
| Interface | USB, Ethernet |
| Length | 272.3mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Number of Channels | 2 |
| Reach SVHC Compliant | No |
| Sampling Rate | 250MS/s |
| Weight | 3.3kg |
| Width | 212.8mm |
| RoHS | Not Compliant |
