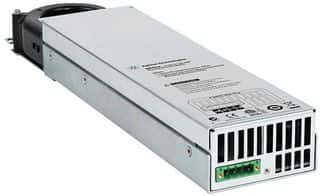

The Keysight Technologies N6766A is a benchtop multimeter module with a maximum output voltage of 60V and a maximum output current of 17A. It operates within a temperature range of 0°C to 55°C and is powered by a 240V supply voltage. The module measures 183mm in height, 425mm in length, and 272mm in width, weighing 1.23kg. It is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Keysight Technologies N6766A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Height | 183mm |
| Length | 425mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 17A |
| Max Output Voltage | 60V |
| Min Output Voltage | 0V |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 100V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 240V |
| Output Current | 17A |
| Output Power | 500W |
| Output Voltage | 60V |
| Reach SVHC Compliant | No |
| Weight | 1.23kg |
| Width | 272mm |
| RoHS | Compliant |
Download the complete datasheet for Keysight Technologies N6766A to view detailed technical specifications.
