The Keysight Technologies N8735A is a benchtop power supply with a maximum output voltage of 30V and a maximum output current of 110A. It operates within a temperature range of 0°C to 55°C. The supply voltage can range from 170V AC to 265V AC. This power supply has a single output and is compliant with Reach SVHC regulations.
Quick Jump:
Technical Specifications
Keysight Technologies N8735A technical specifications.
General
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 110A |
| Max Output Voltage | 30V |
| Min Output Voltage | 0V |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 170V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 260V |
| Output Current | 110A |
| Output Voltage | 30V |
| Reach SVHC Compliant | No |
Compliance
| RoHS | Compliant |
Datasheet
Keysight Technologies N8735A Datasheet
Download the complete datasheet for Keysight Technologies N8735A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

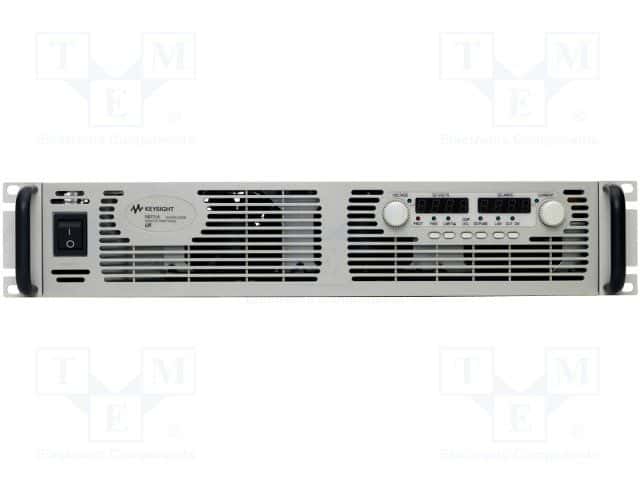

Product Images
