Single-cell battery holder designed for PCB mounting via through-hole termination. Features spring steel contacts with nickel plating for reliable conductivity. Constructed with a PBT body and capable of operating across a wide temperature range from -50°C to 145°C. RoHS compliant and lead-free, this component utilizes PC pins for secure connection.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Keystone Electronics 1025 technical specifications.
General
Approvals
UL
Body Material
Nylon, Glass, PBT
Contact Material
Steel
Contact Plating
Nickel
Contact Type
Spring Steel
Diameter
24mm
Lead Free
Lead Free
Material
Steel
Max Operating Temperature
145°C
Min Operating Temperature
-50°C
Mount
Through Hole, PCB
Number of Batteries
1
Number of Cells
1
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
PC Pin
Wire/Cable Gauge
1AWG
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 1025 Datasheet
Download the complete datasheet for Keystone Electronics 1025 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

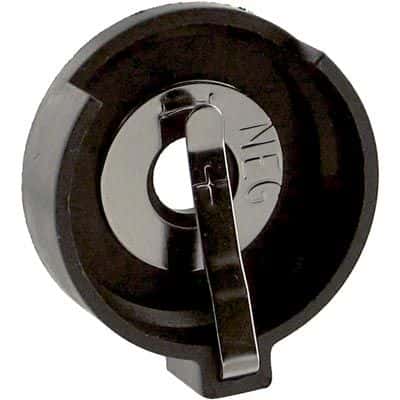

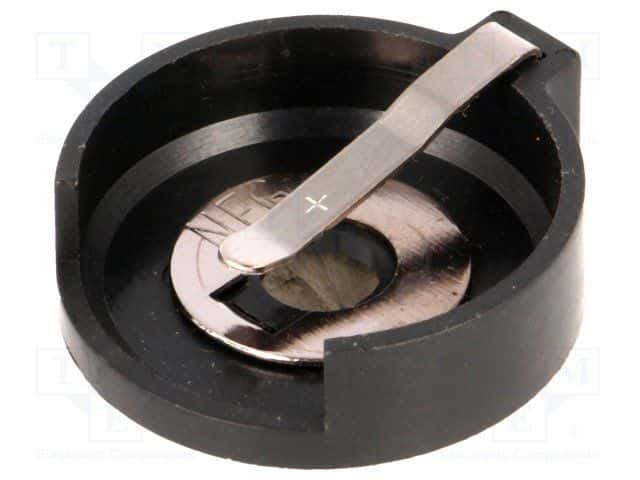

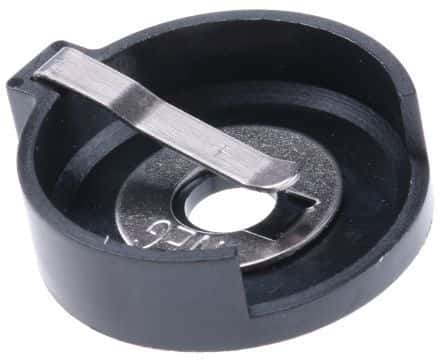

Product Images
