Single-cell battery holder designed for 2/3A size cells. Features a horizontal mounting style with through-hole, PCB, and screw mount options. Constructed from durable plastic (PBT, Nylon, Glass) in black, with brass, nickel, or stainless steel contacts plated in nickel or tin. Utilizes spring contacts for secure connection and snap-in termination. Operates within a temperature range of -50°C to 145°C and is RoHS compliant.
MountingThrough Hole, PCB, Screw
Quick Jump:
Technical Specifications
Keystone Electronics 1029 technical specifications.
General
Approvals
UL
Body Material
Plastic, PBT, Nylon, Glass
Color
Black
Contact Material
Brass, Nickel, Stainless Steel
Contact Plating
Nickel, Tin
Contact Type
Spring
Lead Free
Lead Free
Material
Nylon, Glass, Plastic
Max Operating Temperature
145°C
Min Operating Temperature
-50°C
Mount
Through Hole, PCB, Screw
Mounting Style
HORIZONTAL
Number of Batteries
1
Number of Cells
1
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Snap in
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 1029 Datasheet
Download the complete datasheet for Keystone Electronics 1029 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

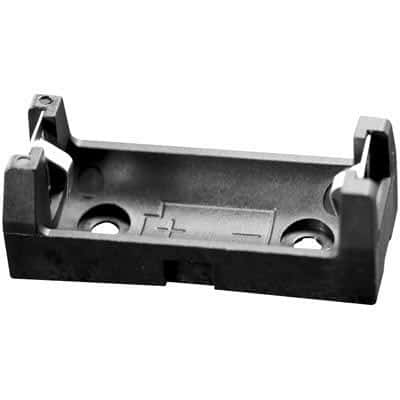

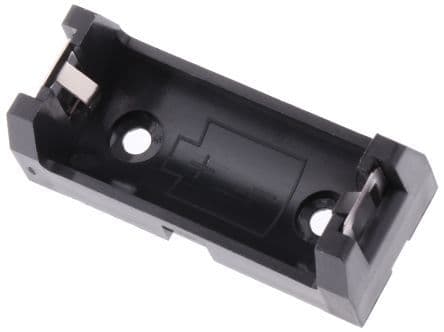

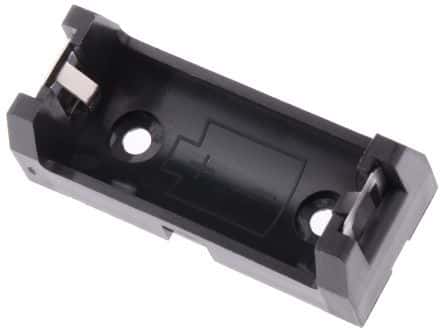

Product Images
