Surface mount battery holder for one coin cell, featuring spring steel contacts and a durable nylon body. Designed for PCB mounting, this component supports a single cell with two contacts. It operates reliably across a wide temperature range, from -50°C to 145°C, and is manufactured with lead-free materials. Bulk packaging is provided for efficient integration into manufacturing processes.
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Keystone Electronics 1061 technical specifications.
General
Approvals
UL
Body Material
Nylon
Contact Material
Steel
Contact Type
Spring Steel
Diameter
20mm
Lead Free
Lead Free
Material
Steel
Max Operating Temperature
145°C
Min Operating Temperature
-50°C
Mount
Surface Mount, PCB
Number of Batteries
1
Number of Cells
1
Number of Contacts
2
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 1061 Datasheet
Download the complete datasheet for Keystone Electronics 1061 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

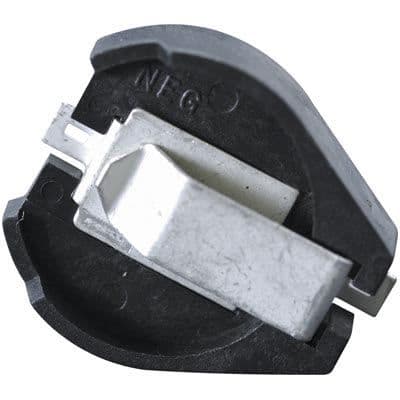

Product Images
