Single-cell battery holder designed for PCB mounting via through-hole termination. Features eight PC pin contacts with tin plating for reliable conductivity. Constructed from steel with a PBT insulator, it supports a single coin cell with a 20mm diameter. Operates across a wide temperature range from -50°C to 145°C. RoHS compliant and lead-free.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Keystone Electronics 1065 technical specifications.
General
Contact Plating
Tin
Diameter
20mm
Lead Free
Lead Free
Material
Steel
Max Operating Temperature
145°C
Min Operating Temperature
-50°C
Mount
Through Hole, PCB
Number of Batteries
1
Number of Cells
1
Number of Contacts
8
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
PC Pin
Width
26.42mm
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 1065 Datasheet
Download the complete datasheet for Keystone Electronics 1065 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

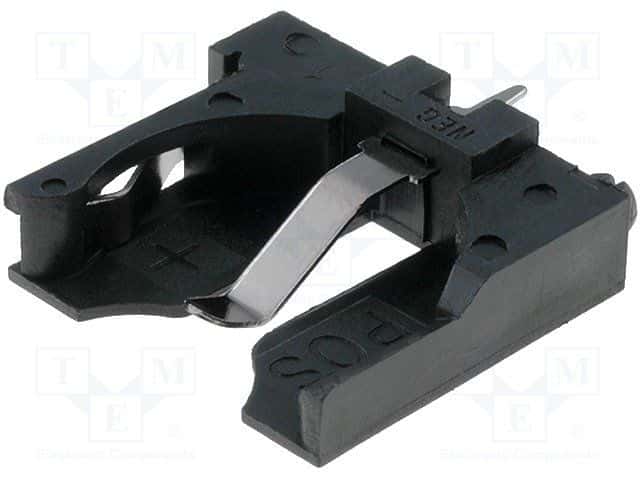

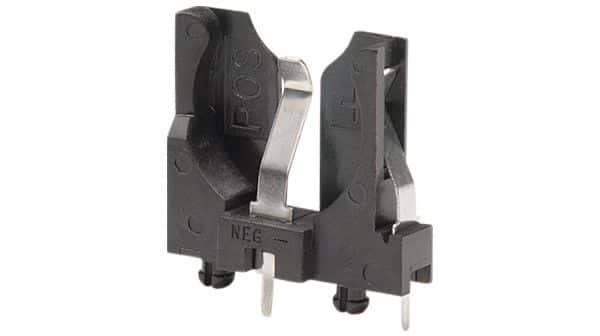

Product Images
