Surface mount battery retainer for single cell cylindrical batteries. Features phosphor bronze material with tin-plated nickel contacts for reliable PCB mounting. Designed for SMT applications, this component offers lead-free construction and a compact 4.31mm height. Supplied in tape and reel packaging for automated assembly.
PackageSMD/SMT
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Keystone Electronics 3034TR technical specifications.
General
Package/Case
SMD/SMT
Contact Material
Nickel
Contact Plating
Tin
Height
4.31mm
Lead Free
Lead Free
Material
Bronze
Mount
Surface Mount, PCB
Number of Batteries
1
Number of Cells
1
Number of Contacts
2
Package Quantity
500
Packaging
Tape and Reel
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 3034TR Datasheet
Download the complete datasheet for Keystone Electronics 3034TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

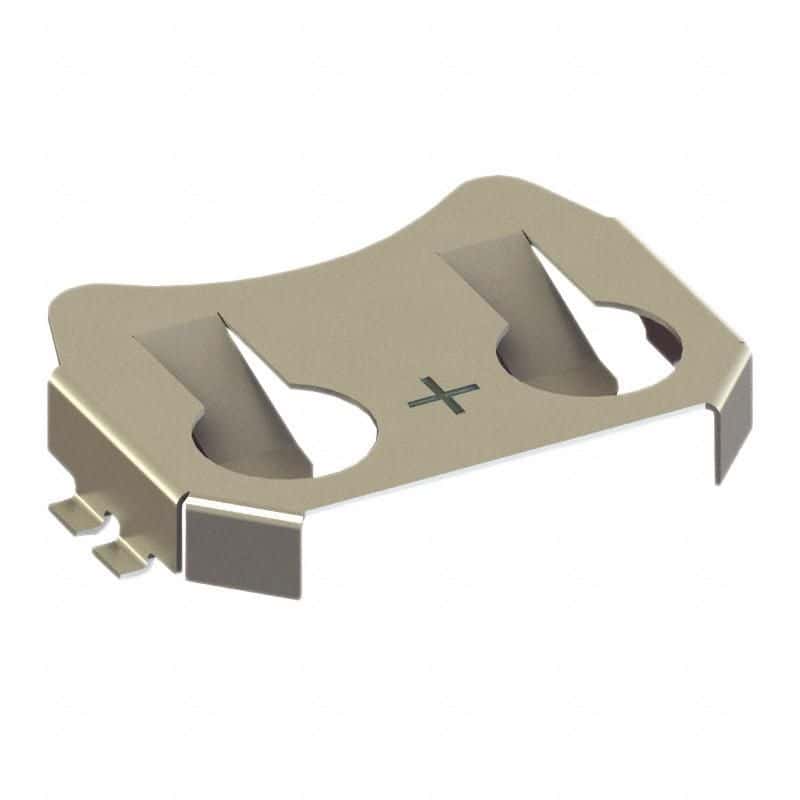

Product Images
