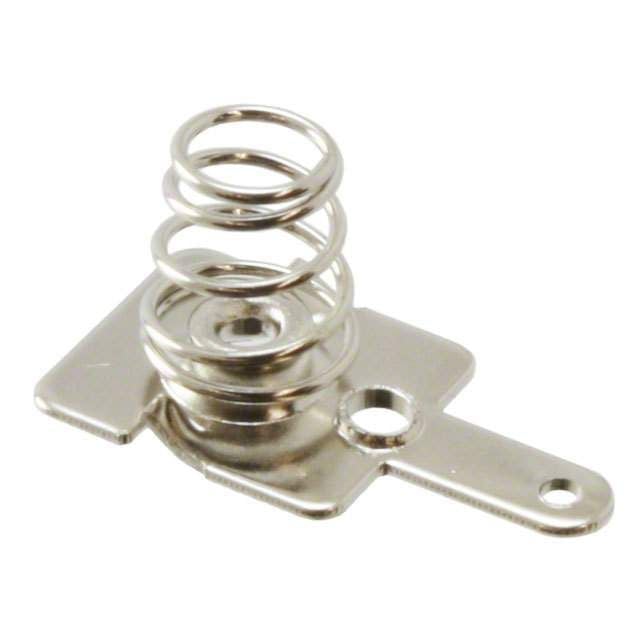

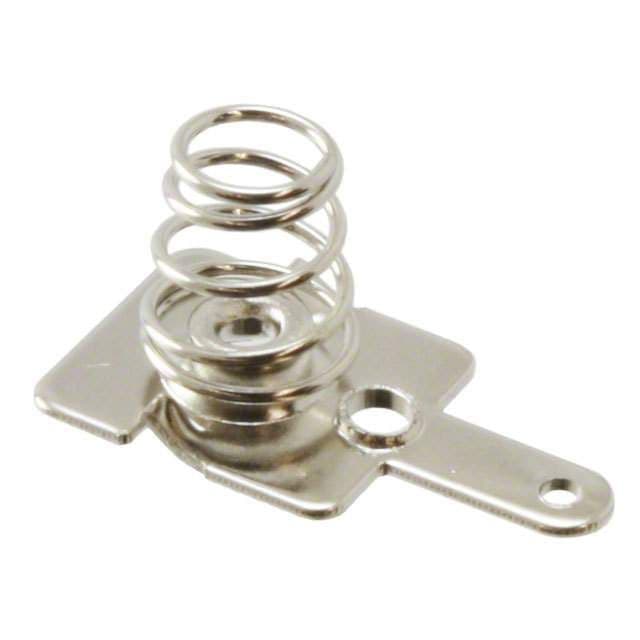

Steel battery spring contact for coin cell and cylindrical battery applications. Features nickel-plated steel body and contact for enhanced conductivity and corrosion resistance. Designed for AAA, AAAA, N, and 12V battery sizes, this spring contact offers a solder termination for secure connection. With a height of 0.409 inches and a thickness of 0.02 inches, it provides a compact solution. RoHS compliant and lead-free, supplied in bulk packaging of 100 units.
Quick Jump:
Technical Specifications
Keystone Electronics 5204 technical specifications.
General
Body Material
Steel
Body Plating
Nickel
Contact Material
Steel
Contact Plating
Nickel
Contact Type
Spring
Height
0.409inch
Lead Free
Lead Free
Material
Steel
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Solder
Thickness
0.02inch
Width
0.362inch
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 5204 Datasheet
Download the complete datasheet for Keystone Electronics 5204 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

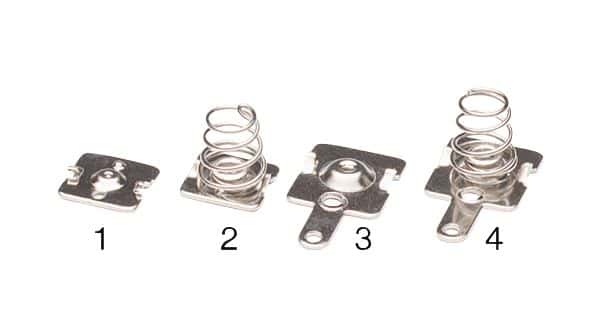

Product Images
