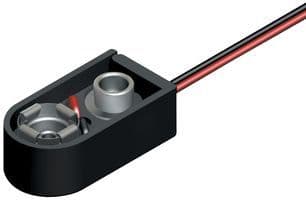

Single-cell battery holder for 9V cylindrical batteries, featuring brass and steel contacts with tin plating. Constructed from ABS and PVC, this non-insulated component offers free-hanging mounting and wire lead termination with a 102mm lead length. Approvals include UL and CSA, with a 0.25-inch pitch and two positions.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Keystone Electronics 84-4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Keystone Electronics 84-4 technical specifications.
| Approvals | UL, CSA |
| Contact Material | Brass, Steel |
| Contact Plating | Tin |
| Insulation | Non-Insulated |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Lead Length | 102mm |
| Length | 9.91mm |
| Material | Brass, ABS |
| Mount | Free Hanging |
| Number of Batteries | 1 |
| Number of Cells | 1 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.25inch |
| Reach SVHC Compliant | No |
| Termination | Wire Leads |
| RoHS | Not Compliant |
