Kingstate
KPEG242
KINGSTATE - KPEG242 - Transducteur, Piezo, Buzzer, Buzzer, Continue, 3 V, 16 V, 7 mA, 70 dB
Frequency4kHz
Current7mA
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Kingstate KPEG242 technical specifications.
General
Diameter
13.7mm
Frequency
4kHz
Height
7.6mm
Max Frequency
4.6kHz
Min Frequency
3.6kHz
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Current
7mA
Max Supply Voltage
16V
Min Supply Voltage
3V
Mount
PCB, Through Hole
Nominal Supply Voltage (DC)
12V
Reach SVHC Compliant
Unknown
Self Resonant Frequency
4.1kHz
Supply Current
7mA
Termination
Pin
Compliance
RoHS
Compliant
Datasheet
Kingstate KPEG242 Datasheet
Download the complete datasheet for Kingstate KPEG242 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

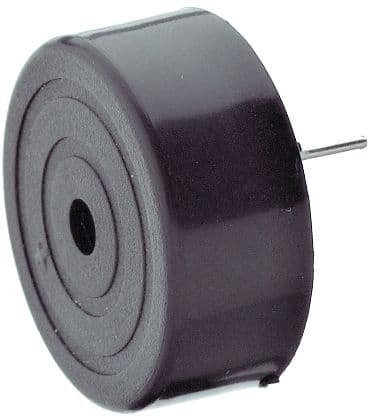

Product Images
