Kingstate
KPEG620AN
Audio Indicator Piezo 60VDC/60VAC 250VDC/250VAC 7mA/18mA 220VDC/220VAC 75dB/76dB 2300Hz to 3300Hz Panel Mount Solder Lug Box
Frequency3.3kHz
Current18mA
MountingPanel
Quick Jump:
Technical Specifications
Kingstate KPEG620AN technical specifications.
General
Diameter
42.5mm
Height
42mm
Max Frequency
3.3kHz
Min Frequency
2.3kHz
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Supply Current
18mA
Max Supply Voltage
250V
Min Supply Voltage
60V
Mount
Panel
Nominal Supply Voltage (DC)
220V
Supply Current
18mA
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Kingstate KPEG620AN Datasheet
Download the complete datasheet for Kingstate KPEG620AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

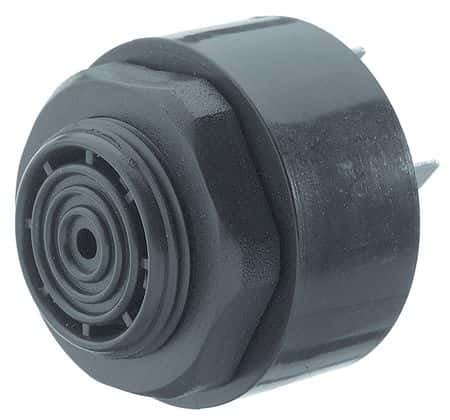

Product Images
