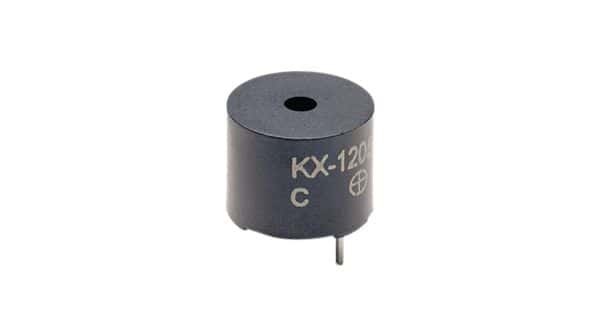

The KXG1212C is a 12mm diameter piezo speaker with a height of 9.5mm, suitable for applications requiring a maximum frequency of 2.6kHz. Operating temperatures range from -30°C to 70°C. The component draws a maximum supply current of 35mA and can operate within a supply voltage range of 8V to 16V. It is designed for through-hole mounting and features a pin termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingstate KXG1212C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Kingstate KXG1212C technical specifications.
| Diameter | 12mm |
| Height | 9.5mm |
| Max Frequency | 2.6kHz |
| Min Frequency | 2kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 35mA |
| Max Supply Voltage (DC) | 16V |
| Min Supply Voltage (DC) | 8V |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 8V |
| Mount | Through Hole |
| Nominal Supply Voltage (DC) | 12V |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.3kHz |
| Supply Current | 35mA |
| Termination | Pin |
| RoHS | Compliant |
