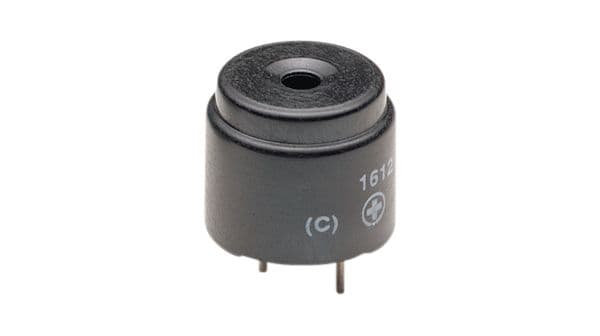

The KXG1606C is a 16mm piezo buzzer with a maximum operating frequency of 2.5kHz and a supply current of 50mA. It operates within a temperature range of -20°C to 60°C and is suitable for use with a supply voltage of 4-7V. The buzzer is mounted through a hole and has a self-resonant frequency of 2.2kHz. It is manufactured by Kingstate and is compliant with Reach SVHC regulations, although the level of compliance is unknown.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingstate KXG1606C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Diameter | 16mm |
| Height | 14mm |
| Max Frequency | 2.5kHz |
| Min Frequency | 1.9kHz |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 50mA |
| Max Supply Voltage (DC) | 7V |
| Min Supply Voltage (DC) | 4V |
| Max Supply Voltage | 7V |
| Min Supply Voltage | 4V |
| Mount | PCB, Through Hole |
| Nominal Supply Voltage (DC) | 6V |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.2kHz |
| Supply Current | 50mA |
| Termination | Pin |
| RoHS | Compliant |
