Knitter-Switch
MFP1220
Slide Switch, 1 Positions, SPDT, Latched, 0.35A, 30VDC, 3 PCB Hole Cnt, Solder Terminal, Through Hole-straight, ROHS COMPLIANT
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Knitter-Switch MFP1220 technical specifications.
General
| Actuator Material | Polyoxymethylene |
| Actuator Type | SLIDE |
| Contact Current Rating | 350mA |
| Contact Material | Silver, Copper Alloy |
| Contact Plating | Nickel, Silver |
| Depth | 6mm |
| Lead Free | Lead Free |
| Length | 13mm |
| Max Current Rating | 350mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -20°C |
| Mount | PCB, Through Hole |
| RoHS Compliant | Yes |
| Termination | PC Pins |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
Knitter-Switch MFP1220 Datasheet
Download the complete datasheet for Knitter-Switch MFP1220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

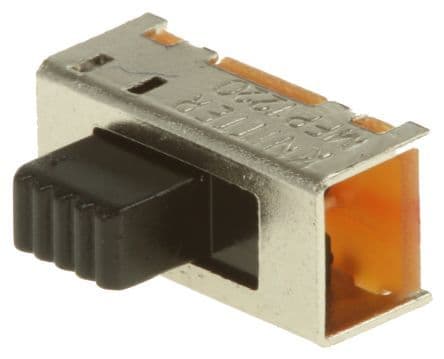

Product Images
