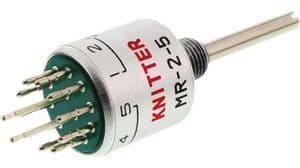

The MR2-5 is a panel mount rotary switch with 2 change-over contacts, rated for 500mA and 125V AC/24V DC. It has a silver contact material and a 36° index angle. The switch is illuminated and has a 6.5mm diameter with a height of 40.8mm. It operates between -45°C and 110°C and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Knitter-Switch MR2-5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 125 |
| Contact Current Rating | 500mA |
| Contact Material | Silver |
| Contact Type | 2 change-overs |
| Diameter | 6.5mm |
| Height | 40.8mm |
| Illumination Type | Illuminated |
| Index Angle | 36° |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -45°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 24V |
| Mount | Panel, Through Hole |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Positions | 5 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Turret |
| Throw Configuration | DP5T |
| Voltage Rating | 125V |
| RoHS | Compliant |
