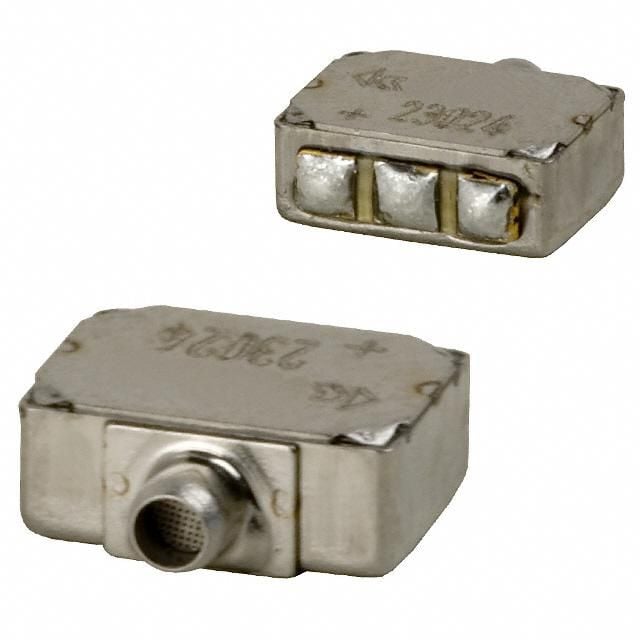

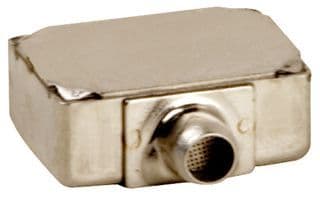

Analog MEMS microphone with omnidirectional pickup pattern. Features a sensitivity of -53dB and a frequency response up to 10kHz. Operating supply current is 50uA with a voltage rating of 1.3V. Component dimensions are 5.56mm length, 3.99mm width, and 2.26mm depth, with a 4.4kR impedance. Solder termination for reliable connection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Knowles EK-23024-C36 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 50uA |
| Depth | 2.26mm |
| Direction | Omnidirectional |
| Frequency | 10kHz |
| Impedance | 4.4kR |
| Length | 5.56mm |
| Operating Supply Current | 50uA |
| Output Type | Analog |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | EK |
| Shape | Rectangular |
| Termination | Solder |
| Voltage Rating | 1.3V |
| Width | 3.99mm |
| RoHS | Not Compliant |
Download the complete datasheet for Knowles EK-23024-C36 to view detailed technical specifications.
