Ceramic trimmer capacitor with a capacitance range of 4.5pF to 20pF, featuring a 350V voltage rating and 100% tolerance. This general-purpose, surface-mount component operates between -40°C and 85°C, with a Q factor of 1500 at 1MHz. Measuring 4.5mm in length, 3.2mm in width, and 1.5mm in height, it is supplied on tape and reel in quantities of 1000 units and is RoHS compliant.
Capacitance0.00000000002F
Voltage Rating350V
MountingSurface Mount
Quick Jump:
Technical Specifications
Knowles JZ200HV technical specifications.
General
Capacitance
0.00000000002F
Dielectric Material
Ceramic
Features
General Purpose
Height
1.5mm
Length
4.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Q Factor
1500
RoHS Compliant
Yes
Series
JZ_HV
Termination
SMD/SMT
Test Frequency
1MHz
Tolerance
100%
Voltage Rating
350V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Knowles JZ200HV Datasheet
Download the complete datasheet for Knowles JZ200HV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

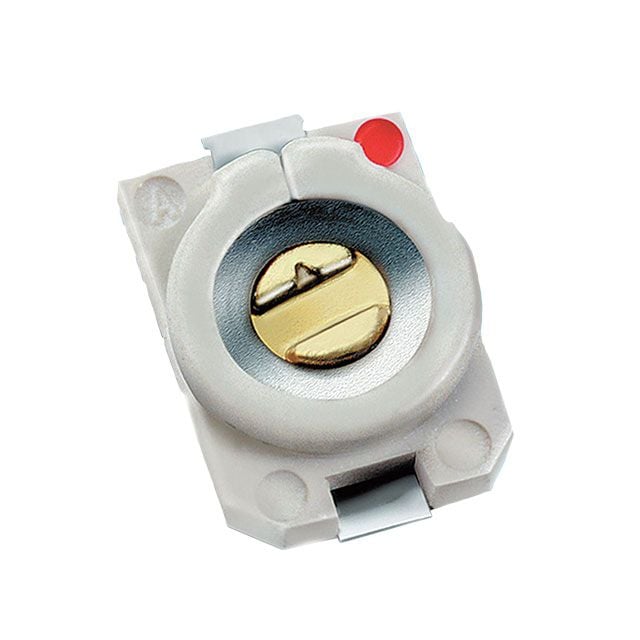

Product Images
