LC PI filter component with 68nF capacitance and 20% tolerance, designed for SMD/SMT termination in a 1206 case code. Features a 1A current rating, 50V voltage rating, and operates across a -55°C to 125°C temperature range. Offers 37dB attenuation with a single channel and a maximum height and width of 1.6mm. Packaged on tape and reel for efficient assembly.
Package1206
Current1A
Capacitance68nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Knowles SBSPP0500683MXT technical specifications.
General
| Attenuation Value | 37dB |
| Capacitance | 68nF |
| Case Code (Imperial) | 1206 |
| Package/Case | 1206 |
| Circuit Type | Filter |
| Current | 1A |
| Current Rating | 1A |
| ESD Protection | No |
| Height | 1.6mm |
| Length | 3.2mm |
| Max DC Current | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Series | SBSP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Knowles SBSPP0500683MXT Datasheet
Download the complete datasheet for Knowles SBSPP0500683MXT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

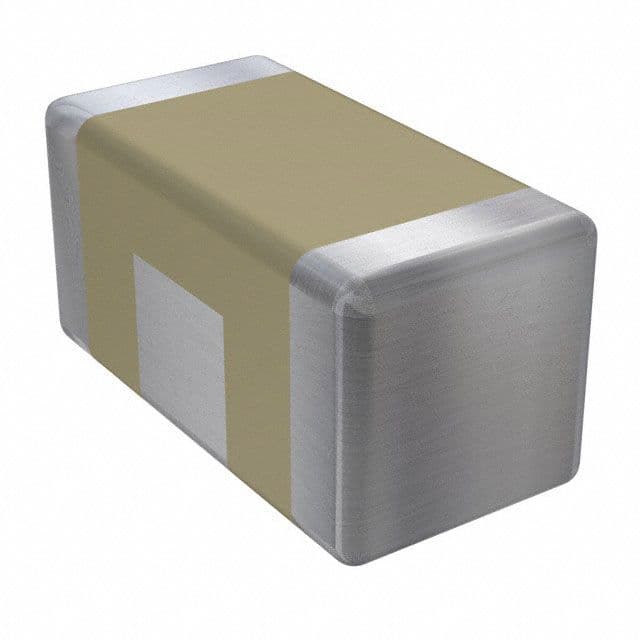

Product Images
