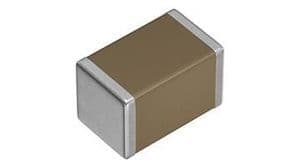

1µF, 6.3V X5R dielectric ceramic capacitor with 10% tolerance. Features a 0402 (1005 metric) surface mount package with SMD/SMT terminations. Operating temperature range from -55°C to 85°C. Constructed from ceramic material with a flat profile, measuring 1mm in length, 0.5mm in width, and 0.56mm in height. Packaged in tape and reel with 10000 units per reel.
Package0402
Voltage6.3V
Capacitance1uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera 04026D105KAT2A technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | X5R |
| Height | 0.56mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
