Surface mount ceramic capacitor with 2.2nF capacitance and 50V DC rated voltage. Features X7R dielectric, 5% tolerance, and a 0603 (1608 metric) case code. Operating temperature range from -55°C to 125°C with a dissipation factor of 2.5%. RoHS compliant and lead-free.
Package0603
Voltage50V
Capacitance2.2nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera 06035C222JAT2A technical specifications.
General
| Capacitance | 2.2nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.81mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.81mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 06035C222JAT2A Datasheet
Download the complete datasheet for Kyocera 06035C222JAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

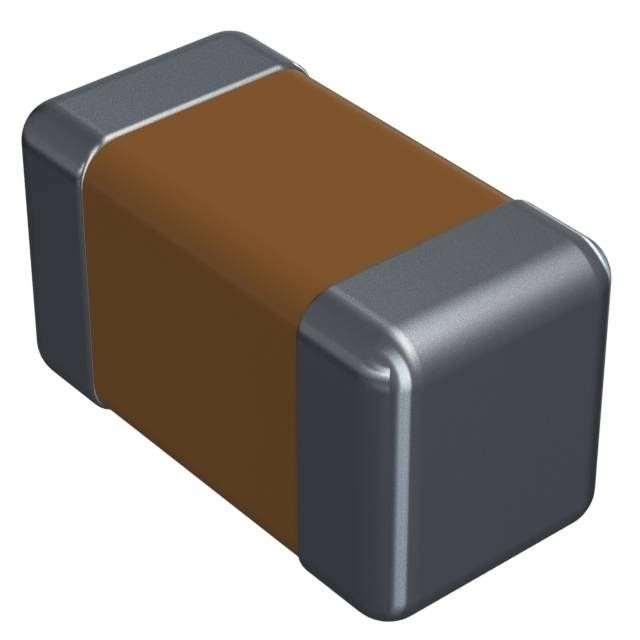

Product Images
