Multilayer ceramic capacitor featuring 330pF capacitance and 50V DC rated voltage. This surface mount component utilizes a C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. The 0805 case code (2.01mm L x 1.25mm W x 0.94mm H) offers a 5% tolerance and a 2.5% dissipation factor. Designed for PCB mounting, it is RoHS compliant and supplied in tape and reel packaging.
Package0805
Voltage50V
Capacitance330pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera 08055A331JAT2A technical specifications.
General
| Capacitance | 330pF |
| Case Code | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Height | 0.94mm |
| Lead Free | Lead Free |
| Length | 2.01mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 08055A331JAT2A Datasheet
Download the complete datasheet for Kyocera 08055A331JAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

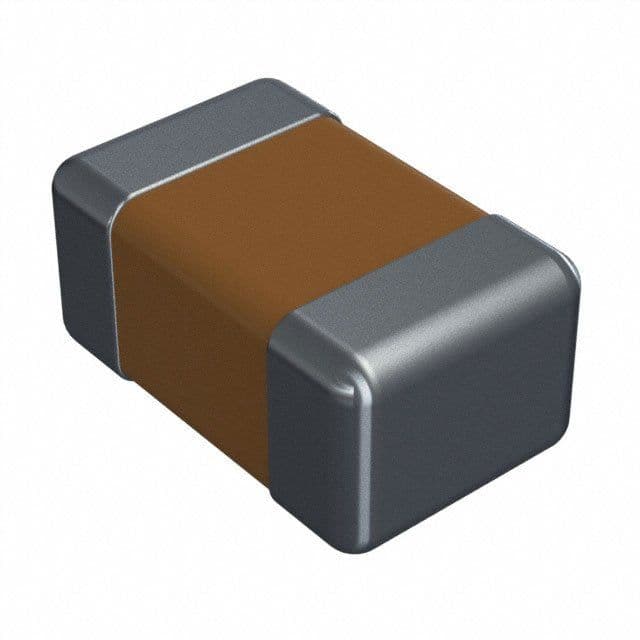

Product Images
