Surface mount ceramic capacitor with 100nF capacitance and 50V DC rating. Features X7R dielectric, 10% tolerance, and an 0805 case code (2012 metric). Operating temperature range from -55°C to 125°C. Includes soft termination for improved reliability and is AEC-Q200 qualified for automotive applications. Packaged in tape and reel.
Package0805
Voltage50V
Capacitance100nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera 08055C104K4Z2A technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Features | Soft Termination |
| Height | 0.94mm |
| Lead Free | Lead Free |
| Length | 2.01mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FLEXITERM® |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 08055C104K4Z2A Datasheet
Download the complete datasheet for Kyocera 08055C104K4Z2A to view detailed technical specifications.
No datasheet is available for this part.

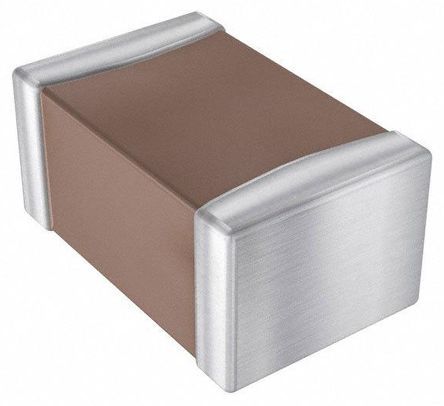

Product Images
