16V 10µF X5R multilayer ceramic capacitor, 10% tolerance, in an 0805 (2012 metric) surface mount package. Features a ceramic dielectric with an operating temperature range of -55°C to +85°C. This component is lead-free and RoHS compliant, supplied on tape and reel.
Package0805
Voltage16V
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera 0805YD106KAT2A technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 2.01mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 0805YD106KAT2A Datasheet
Download the complete datasheet for Kyocera 0805YD106KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

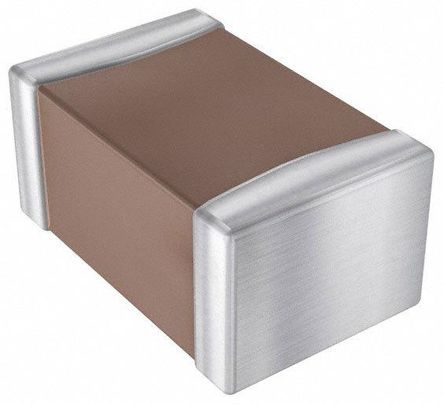

Product Images
