Surface mount ceramic capacitor with 4.7µF capacitance and 10V DC rating. Features X5R dielectric, 20% tolerance, and 5% dissipation factor. Encased in a 0805 (2012 metric) case code with dimensions of 2.01mm length, 1.25mm width, and 1.25mm depth. Operates across a temperature range of -55°C to 85°C. RoHS compliant and lead-free.
Package0805
Capacitance4.7uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera 0805ZD475MAT2A technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X5R |
| Dissipation Factor | 5% |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 2.01mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 0805ZD475MAT2A Datasheet
Download the complete datasheet for Kyocera 0805ZD475MAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

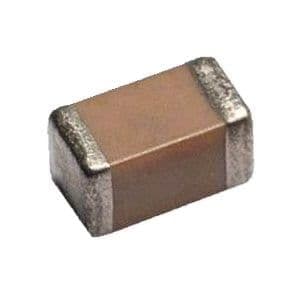

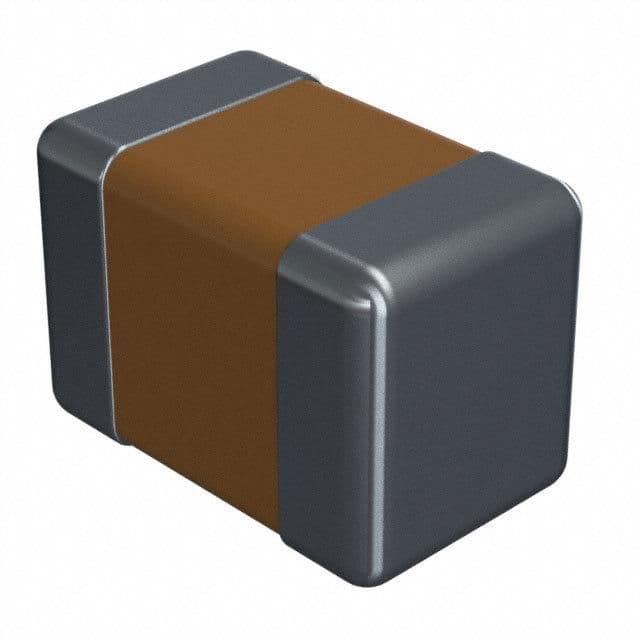

Product Images
