Surface mount ceramic capacitor featuring 100nF capacitance and 100V DC rated voltage. Dielectric material is X7R, offering a tolerance of 10%. Encased in a 1206 (3216 metric) case code, this component has a maximum operating temperature of 125°C and a minimum of -55°C. It is RoHS compliant and constructed with flat terminations.
Package1206
Voltage100V
Capacitance100nF
Voltage Rating100V
Quick Jump:
Technical Specifications
Kyocera 12061C104KAT2A technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Height | 1.27mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 0.05inch |
| Tolerance | 10% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 12061C104KAT2A Datasheet
Download the complete datasheet for Kyocera 12061C104KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

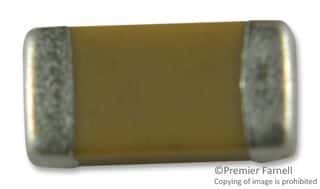

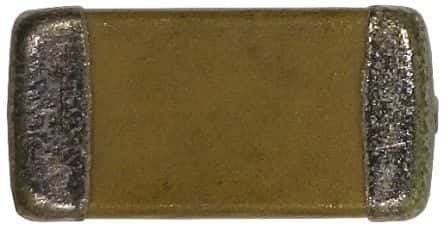

Product Images
