Surface mount ceramic capacitor with 47nF capacitance and 100V DC rated voltage. Features X7R dielectric material and a 5% tolerance. Constructed with a flat profile in a 1206 imperial (3216 metric) case code, measuring 3.2mm in length, 1.6mm in width, and 0.94mm in height. Operating temperature range is -55°C to 125°C. RoHS compliant and lead-free.
Package1206
Voltage100V
Storage0.94mm
Capacitance47nF
Quick Jump:
Technical Specifications
Kyocera 12061C473JAT2A technical specifications.
General
| Capacitance | 47nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Height | 0.94mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Size | 0.94mm |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 5% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 12061C473JAT2A Datasheet
Download the complete datasheet for Kyocera 12061C473JAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

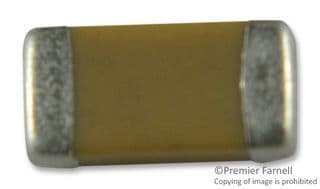

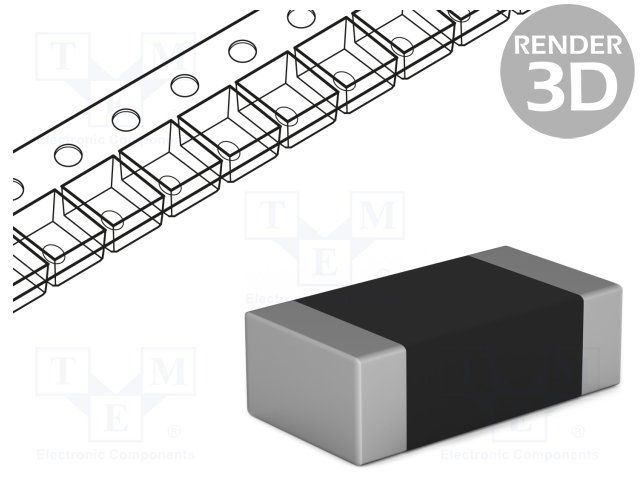

Product Images
