Surface mount multilayer ceramic capacitor featuring 22nF capacitance and a 200V DC rating. This general-purpose ceramic capacitor utilizes an X7R dielectric, offering a 10% tolerance and operating across a -55°C to +125°C temperature range. The 1206 (3216 metric) case size measures 3.2mm x 1.6mm x 1.27mm. It is RoHS compliant and supplied on tape and reel.
Package1206
Voltage200V
Storage1.27mm
Capacitance22nF
Quick Jump:
Technical Specifications
Kyocera 12062C223KAT2A technical specifications.
General
| Capacitance | 22nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Height | 1.27mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Size | 1.27mm |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 200V |
| Voltage Rating | 200V |
| Voltage Rating (AC) | 200V |
| DC Rated Voltage | 200V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 12062C223KAT2A Datasheet
Download the complete datasheet for Kyocera 12062C223KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

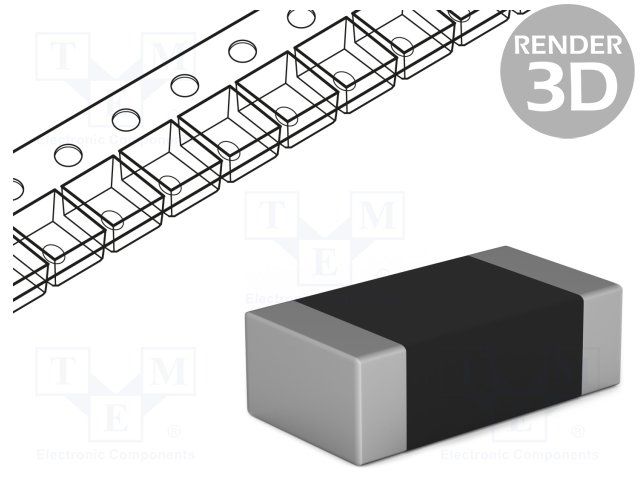

Product Images
