Surface mount ceramic capacitor with 22 µF capacitance and 10V DC rated voltage. Features X7R dielectric, ±10% tolerance, and a 1206 (3216 metric) case code. Operating temperature range from -55°C to 125°C. RoHS compliant with lead-free termination.
Package1206
Voltage10V
Capacitance22uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera 1206ZC226KAT2A technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dissipation Factor | 5% |
| Height | 1.52mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 1206ZC226KAT2A Datasheet
Download the complete datasheet for Kyocera 1206ZC226KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

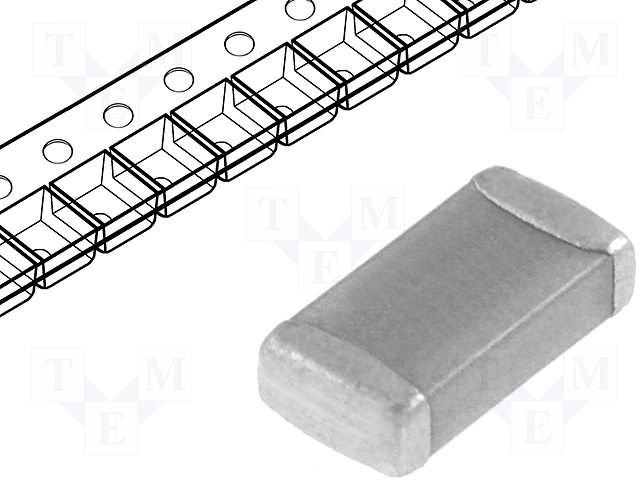

Product Images
