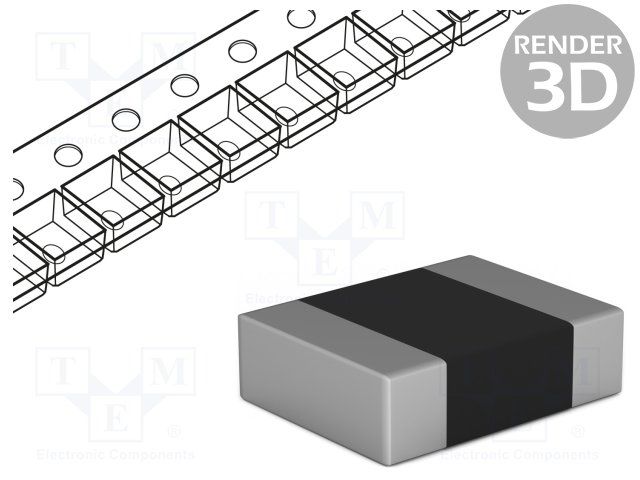

Surface mount multilayer ceramic capacitor (MLCC) with 1uF capacitance and 10% tolerance. Features X7R dielectric, 50V DC rated voltage, and a 1210 (3225 metric) case code. Operating temperature range from -55°C to 125°C. This component is lead-free, RoHS compliant, and AEC-Q200 rated, supplied in tape and reel packaging. Dimensions include 3.2mm length, 2.5mm depth, and 2.29mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kyocera 12105C105K4T2A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 1uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.098inch |
| RoHS | Compliant |
