Surface mount ceramic capacitor with 2.2µF capacitance and 50V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 10% tolerance. Housed in a 1210 (3225 metric) case code with soft termination for enhanced reliability. RoHS compliant and supplied in tape and reel packaging.
Package1210
Capacitance2.2uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera 12105C225KAZ2A technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Features | Soft Termination |
| Height | 2.79mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | FLEXITERM® |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 12105C225KAZ2A Datasheet
Download the complete datasheet for Kyocera 12105C225KAZ2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

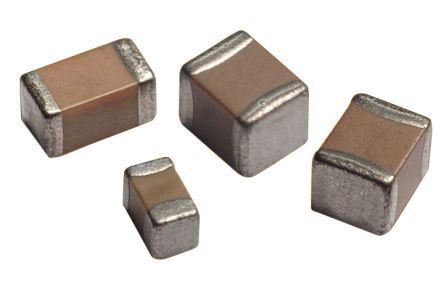

Product Images
