Surface mount ceramic capacitor with 1nF capacitance and 2kV voltage rating. Features X7R dielectric material and a 1210 case code (3.2mm x 2.5mm). Operates across a -55°C to 125°C temperature range with 10% tolerance. Lead-free and RoHS compliant construction.
Package1210
Voltage2kV
Capacitance1nF
Voltage Rating2kV
Quick Jump:
Technical Specifications
Kyocera 1210GC102KAT1A technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 1.7mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 0.067inch |
| Tolerance | 10% |
| Voltage | 2kV |
| Voltage Rating | 2kV |
| Voltage Rating (AC) | 2kV |
| DC Rated Voltage | 2kV |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 1210GC102KAT1A Datasheet
Download the complete datasheet for Kyocera 1210GC102KAT1A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

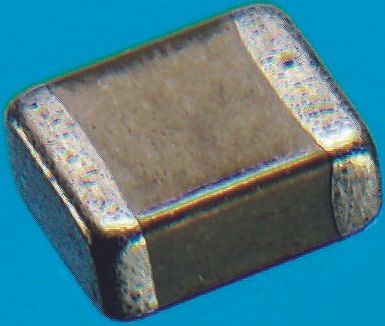

Product Images
