Surface mount multilayer ceramic capacitor with 1nF capacitance and a 2kV voltage rating. Features X7R dielectric for stable performance across a -55°C to 125°C temperature range. Housed in a 1812 (4532 Metric) case code with ±10% tolerance. Lead-free and RoHS compliant, this component is supplied on tape and reel.
Package1812
Voltage300V
Storage2.54mm
Capacitance1nF
Quick Jump:
Technical Specifications
Kyocera 1812GC102KAT1A technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 2.54mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Size | 2.54mm |
| Termination | SMD/SMT |
| Thickness | 0.1inch |
| Tolerance | 20% |
| Voltage | 300V |
| Voltage Rating | 2kV |
| Voltage Rating (AC) | 2kV |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 1812GC102KAT1A Datasheet
Download the complete datasheet for Kyocera 1812GC102KAT1A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

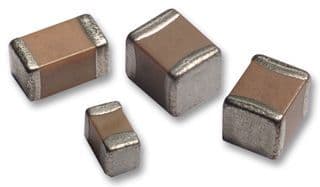

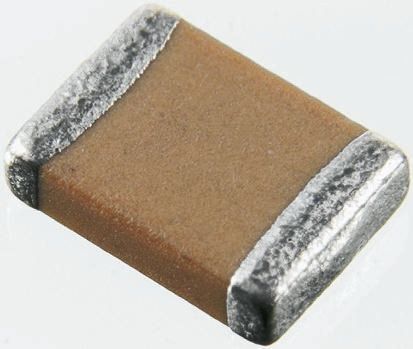

Product Images
