Surface mount ceramic capacitor with 1nF capacitance and 20% tolerance. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. Rated for 2kV DC, this 1812 case code component offers a 2.5% dissipation factor and lead-free, RoHS-compliant construction. Packaged in tape and reel for automated assembly.
Package1812
Capacitance1nF
Voltage Rating2kV
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera 1812GC102MAT1A technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Height | 2.54mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 1812 |
| Termination | SMD/SMT |
| Thickness | 0.1inch |
| Tolerance | 20% |
| Voltage Rating | 2kV |
| DC Rated Voltage | 2kV |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 1812GC102MAT1A Datasheet
Download the complete datasheet for Kyocera 1812GC102MAT1A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

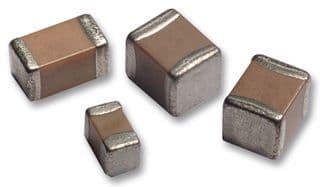

Product Images
