Surface mount film capacitor with 100nF capacitance and 25V DC rating. Features a 5% tolerance and PEN dielectric material. Operating temperature range from -55°C to 125°C. Housed in a 1210 (3225 metric) case with tin, matte contact plating. Packaged on tape and reel, this RoHS compliant component is suitable for general applications.
Package1210
Capacitance100nF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera CB027C0104JBA technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Contact Plating | Tin, Matte |
| Depth | 2.5mm |
| Dielectric Material | Polyester |
| Dissipation Factor | 0.8% |
| Height | 0.091inch |
| Length | 0.126inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CB |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 25V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 25V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera CB027C0104JBA Datasheet
Download the complete datasheet for Kyocera CB027C0104JBA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

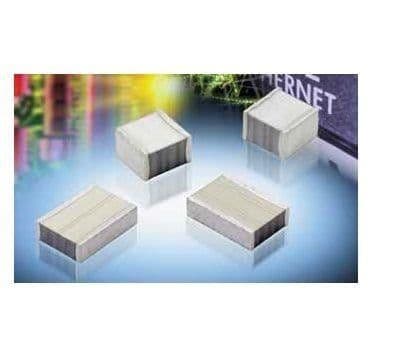

Product Images
