Surface mount PTC resettable fuse, 1.25A current rating, 32V DC maximum voltage. Features 90mR DC cold resistance, 0603 case size (1.6mm L x 0.81mm W x 0.63mm H), and operates from -55°C to 125°C. Lead-free and RoHS compliant, with UL approval.
Package0603
Resistance90mR
Voltage Rating125V
Current Rating1.25A
Quick Jump:
Technical Specifications
Kyocera F0603E1R25FSTR technical specifications.
General
| Approvals | UL |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Current Rating | 1.25A |
| DC Cold Resistance | 90mR |
| Height | 0.63mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 32V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 90mR |
| RoHS Compliant | Yes |
| Series | Accu-Guard® II |
| Terminal Material | Nickel |
| Voltage Rating | 125V |
| DC Rated Voltage | 32V |
| Width | 0.81mm |
| Working Voltage | 32V |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera F0603E1R25FSTR Datasheet
Download the complete datasheet for Kyocera F0603E1R25FSTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

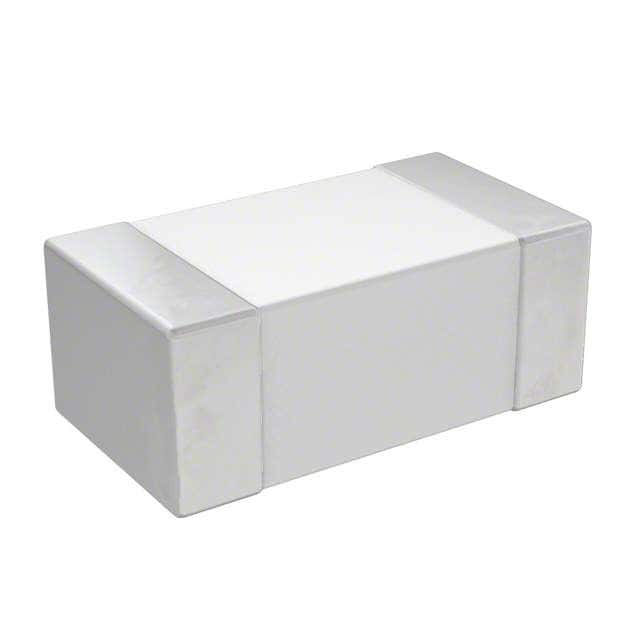

Product Images
