Radial film capacitor, 1.5µF capacitance with 10% tolerance, rated for 1.1kV DC and 180V AC. Features a PP dielectric, 45mΩ ESR, and a 3.3A current rating. Designed for through-hole mounting with radial leads, 0.8mm lead diameter, and 27.5mm lead pitch. Operates across a -55°C to 105°C temperature range.
PackageRadial
Voltage1.1kV
Capacitance1.5uF
Voltage Rating1.1kV
Quick Jump:
Technical Specifications
Kyocera FFB16L0155K technical specifications.
General
| Capacitance | 1.5uF |
| Package/Case | Radial |
| Current Rating | 3.3A |
| Depth | 13mm |
| Dielectric | PP |
| Dielectric Material | PP |
| ESR (Equivalent Series Resistance) | 45mR |
| Height | 13mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 5.5mm |
| Lead Pitch | 27.5mm |
| Length | 31.1mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | FFB |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 1.1kV |
| Voltage Rating | 1.1kV |
| Voltage Rating (AC) | 180V |
| DC Rated Voltage | 1.1kV |
| Width | 22.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera FFB16L0155K Datasheet
Download the complete datasheet for Kyocera FFB16L0155K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

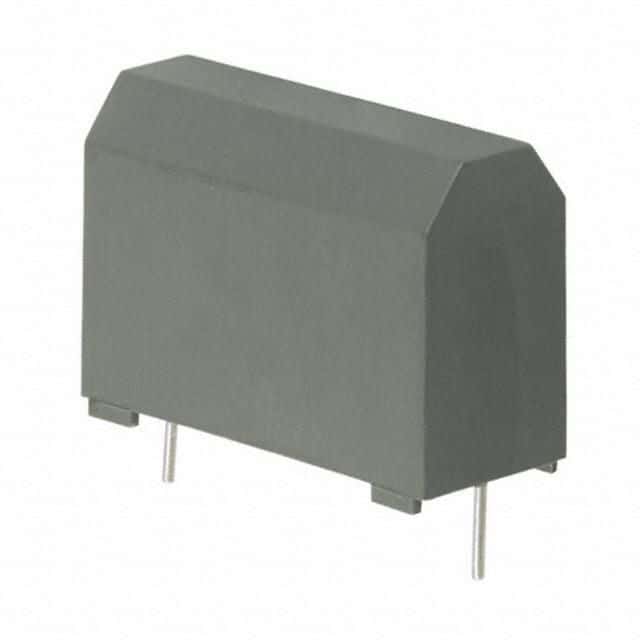

Product Images
