Radial film capacitor with 20µF capacitance and 10% tolerance. Features a 700VDC voltage rating and 120VAC rating, with a maximum operating temperature of 105°C. This through-hole component utilizes a PP dielectric and offers a low ESR of 5.15mΩ. Dimensions include 36mm depth and width, 40mm height, with a 30mm lead pitch.
PackageRadial
Voltage700V
Capacitance20uF
Voltage Rating700V
Quick Jump:
Technical Specifications
Kyocera FFV36A0206K technical specifications.
General
| Capacitance | 20uF |
| Package/Case | Radial |
| Current Rating | 30A |
| Depth | 36mm |
| Dielectric | PP |
| Dielectric Material | PP |
| ESR (Equivalent Series Resistance) | 5.15mR |
| Height | 40mm |
| Lead Diameter | 1.2mm |
| Lead Free | Contains Lead |
| Lead Length | 4.5mm |
| Lead Pitch | 30mm |
| Lead/Base Style | Straight |
| Length | 40mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 36 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | FFV3 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 700V |
| Voltage Rating | 700V |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 700V |
| Width | 36mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera FFV36A0206K Datasheet
Download the complete datasheet for Kyocera FFV36A0206K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

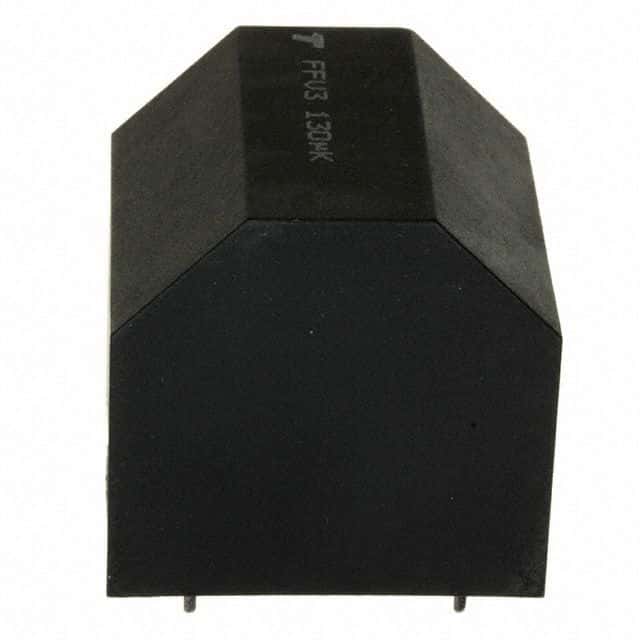

Product Images
