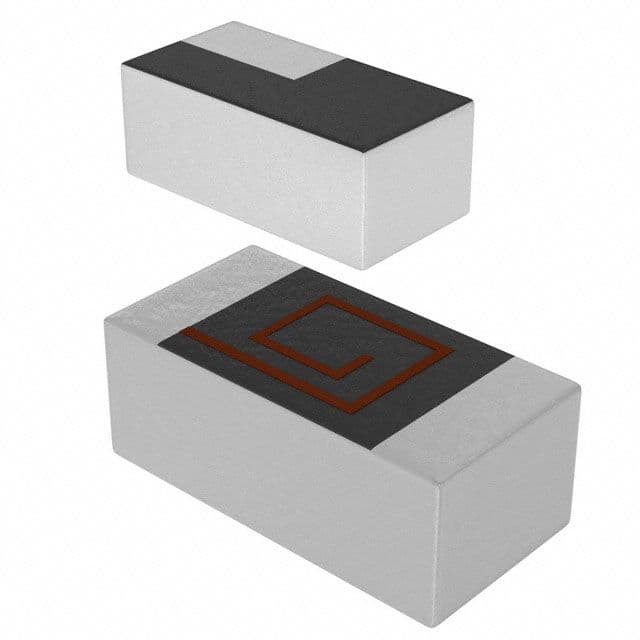

Surface mount fixed inductor with 1.8nH inductance and 1A current rating. Features a 70mΩ DC resistance and operates within a -55°C to 125°C temperature range. This unshielded, non-magnetic ceramic core component is housed in a compact 0603 (1608 metric) SMD package. It boasts a self-resonant frequency of 10GHz and is RoHS compliant.
Package0603
Current Rating1A
MountingSurface Mount
Inductance1.8nH
Quick Jump:
Technical Specifications
Kyocera L06031R8CGSTR technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Non-Magnetic, Ceramic |
| Current Rating | 1A |
| DC Resistance (DCR) | 70mR |
| DC Resistance-Max | 70MR |
| Depth | 0.91mm |
| Height | 0.61mm |
| Height - Seated (Max) | 0.028inch |
| Inductance | 1.8nH |
| Lead Free | Lead Free |
| Length | 0.063inch |
| Max DC Current | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Rated Current-Max | 1A |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 10GHz |
| Series | Accu-L® |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 450MHz |
| Thickness | 610um |
| Tolerance | 2% |
| Width | 0.032inch |
Compliance
| RoHS | Compliant |
