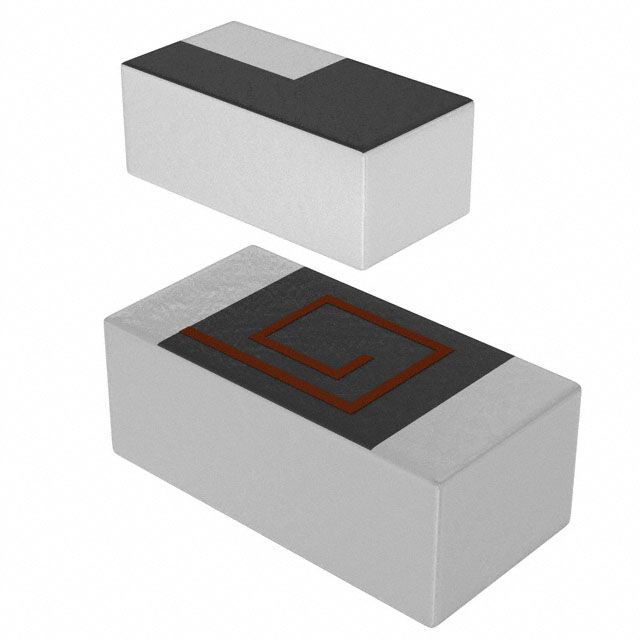

Surface mount fixed inductor with 6.8nH inductance and 300mA current rating. Features a 0603 (1608 metric) ceramic core, 300mΩ DC resistance, and a self-resonant frequency of 4.5GHz. Operates from -55°C to 125°C and is RoHS compliant. Packaged on tape and reel.
Package0603
Current Rating300mA
MountingSurface Mount
Inductance6.8nH
Quick Jump:
Technical Specifications
Kyocera L06036R8CGSTR technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Non-Magnetic, Ceramic
Current Rating
300mA
DC Resistance (DCR)
300mR
DC Resistance-Max
300mR
Depth
0.91mm
Height
0.61mm
Height - Seated (Max)
0.028inch
Inductance
6.8nH
Lead Free
Lead Free
Length
0.063inch
Max DC Current
300mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Q Factor
23
Rated Current-Max
300mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
4.5GHz
Series
Accu-L®
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
450MHz
Thickness
610um
Tolerance
2.94%
Width
0.032inch
Compliance
RoHS
Compliant
Datasheet
Kyocera L06036R8CGSTR Datasheet
Download the complete datasheet for Kyocera L06036R8CGSTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
