Radial ceramic capacitor with 100nF capacitance and 50V voltage rating. Features Z5U dielectric, 20% tolerance, and a molded construction. Through-hole mounting with a 0.325mm lead pitch and 0.48mm lead diameter. Operating temperature range from 10°C to 85°C.
PackageMolded
Voltage50V
Storage3.43mm
Capacitance100nF
Quick Jump:
Technical Specifications
Kyocera MD015E104MAB technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Molded |
| Construction | RADIAL |
| Depth | 2.54mm |
| Dielectric | Z5U |
| Dielectric Material | Ceramic |
| Dissipation Factor | 4% |
| Height | 3.43mm |
| Height - Seated (Max) | 0.175inch |
| Lead Diameter | 0.48mm |
| Lead Free | Contains Lead |
| Lead Pitch | 0.325mm |
| Length | 6.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 10°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | DIPGuard® MD |
| Size | 3.43mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Width | 0.1inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Kyocera MD015E104MAB Datasheet
Download the complete datasheet for Kyocera MD015E104MAB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

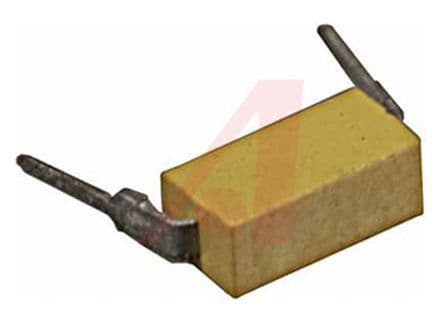

Product Images
