3.58MHz ceramic resonator, surface mount (SMD/SMT) package. Features 30pF load capacitance and 0.5% frequency tolerance. Operates within a -40°C to 85°C temperature range with a 5V operating supply voltage. RoHS compliant and lead-free.
Frequency3.58MHz
PackageSMD/SMT
Capacitance30pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera PBRC3.58HR50X000 technical specifications.
General
| Capacitance | 30pF |
| Package/Case | SMD/SMT |
| Dielectric Material | Ceramic |
| Frequency | 3.58MHz |
| Frequency Stability | 0.5% |
| Frequency Tolerance | 0.5% |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 7.4mm |
| Load Capacitance | 30pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 3.58 MHz |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 3.58MHz |
| Series | PBRC-H, Kyocera |
| Termination | SMD/SMT |
| Tolerance | 0.5% |
| Width | 3.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera PBRC3.58HR50X000 Datasheet
Download the complete datasheet for Kyocera PBRC3.58HR50X000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

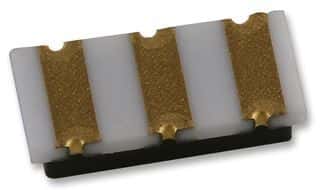

Product Images
