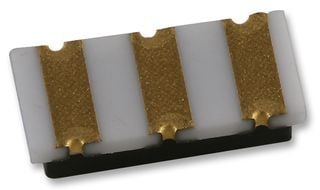

The PBRV8.00HR50Y000 is an 8MHz resonator with 0.5% frequency stability and a maximum operating temperature of 125°C. It is packaged in a surface mount SMD/SMT package and is available on cut tape. The device is RoHS compliant but not Reach SVHC compliant. It has a capacitance of 30pF and a load capacitance of 30pF.
Sign in to ask questions about the Kyocera PBRV8.00HR50Y000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Kyocera PBRV8.00HR50Y000 technical specifications.
| Accuracy | 0.5% |
| Capacitance | 30pF |
| Package/Case | SMD/SMT |
| Frequency | 8MHz |
| Frequency Stability | 0.3% |
| Frequency Tolerance | 0.5% |
| Height | 0.079inch |
| Length | 0.291inch |
| Load Capacitance | 30pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 8MHz |
| Series | PBRV-H, Kyocera |
| Termination | SMD/SMT |
| Width | 0.134inch |
| RoHS | Compliant |
