Technical Specifications
Kyocera SF14-1575F5UUA1 technical specifications.
General
| Bandwidth | 3MHz |
| Package/Case | SMD/SMT |
| Frequency | 1.575GHz |
| Height | 0.028inch |
| Impedance | 50R |
| Insertion Loss | 1.4dB |
| Length | 0.055inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | SF, Kyocera |
| Termination | SMD/SMT |
| Width | 0.043inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera SF14-1575F5UUA1 Datasheet
Download the complete datasheet for Kyocera SF14-1575F5UUA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

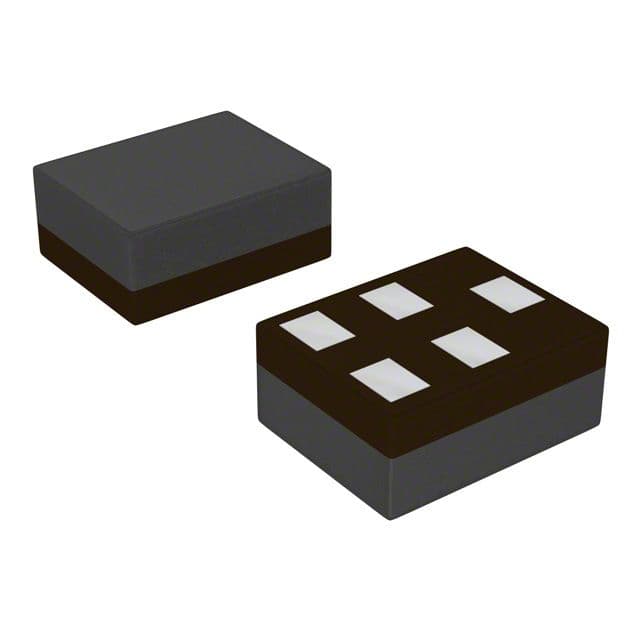

Product Images
